Lecon manufactures state-of-the-art VCB & VC Panels for both medium voltage and low voltage applications as per customer specifications.
We have supplied our panels to leading manufacturers in HVAC, Steel, Mining and Water Supply.
Lecon offers Vaccum Circuit Breaker (VCB) and Vaccum Contactor (VC) panels as per the customer needs.
We manufacture both MV (3.3kV, 6.6kV, 11kV and 13.8kV) and LV (415V) switchgear panels, for circuits involving motors, feeder circuits and generators. Our VCB panels are manufactured using ABB VD4 and offer protection relay, voltage and current metering as per customer specifications.
Our VCB & VC panels are typed tested at CPRI, Bengaluru.

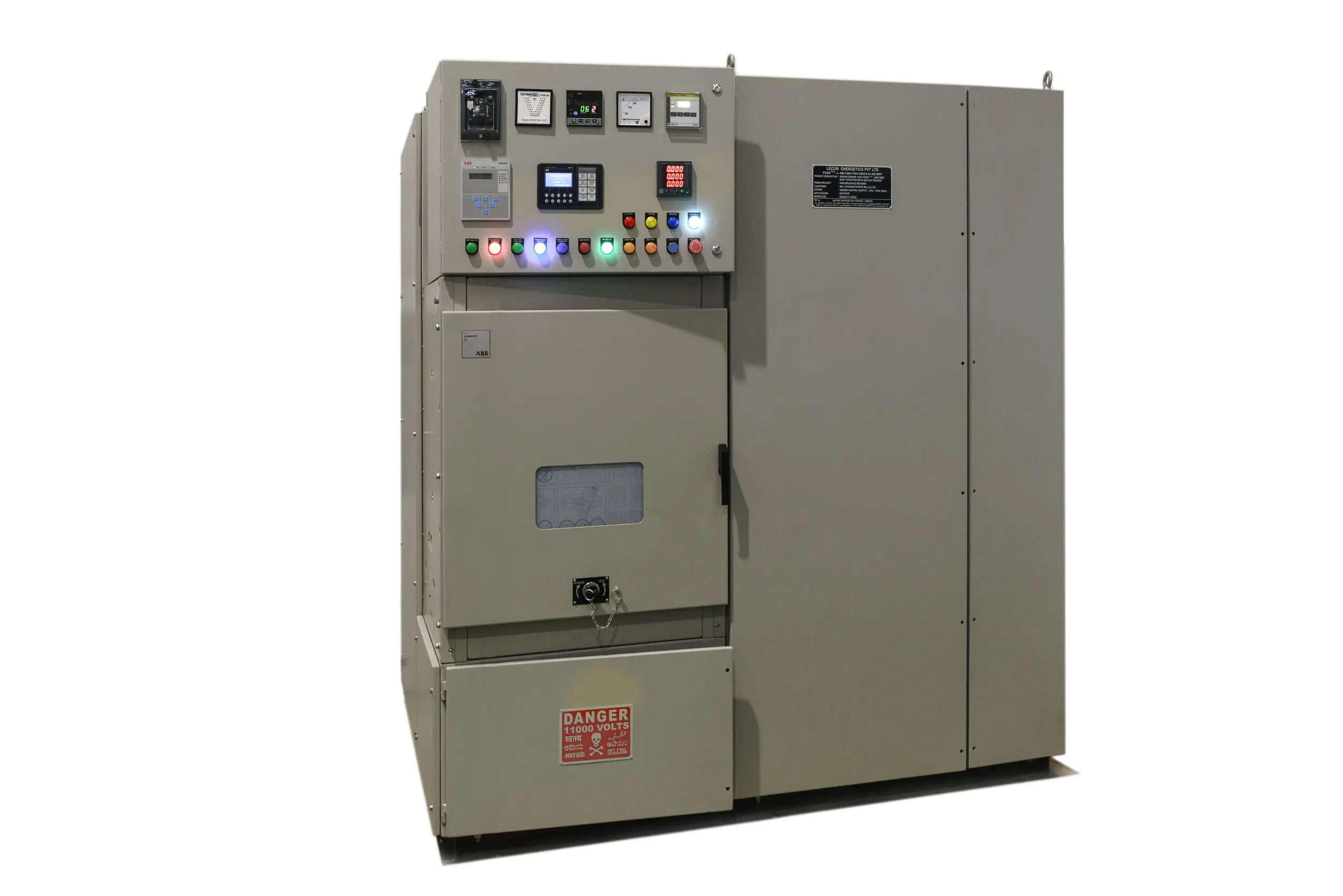

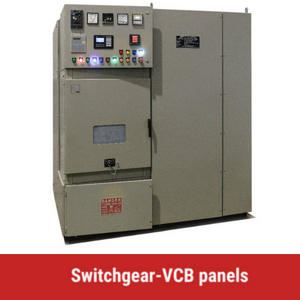

Vacuum Circuit Breakers (VCB) Panels
Parameter | Specifications | Unit |
|---|---|---|
Make | ABB | |
Rated Voltage | Upto 13.8 | kV |
Rated Frequency | 50 - 60 | Hz |
Rated Nominal Current | 630 - 4000 | A |
Rated short time withstand current for 3 sec | Upto 40 | kA |
Vacuum Contactor (VC) Panels
Parameter | Specifications | Unit |
|---|---|---|
Make | CG, EPCOS, ABB | |
Rated Voltage | Upto 13.8 | kV |
Rated Frequency | 50 - 60 | Hz |
Rated Nominal Current | 400 - 800 | A |
Rated short time withstand current for 1 sec | 9 | kA |
Control voltage AC/DC | 110 - 220 | V |
